Instruments typically found in a Civil War hospital set 1861- 65

By Dr. Michael Echols

Surgical instrument maker names, dates, and locations during the Civil War: Tiemann, Hernstein, Otto, Reynders, Gemrig, Kern, Kolbe, Helmold, Kuemerle, Leypoldt, Teufel, Snowden & Brother, Codman, Shurtleff, Rees, Wade, Ford, Wirz, Wocher, Brinkerhoff, Tiencken.  These are the maker names you would expect to find on instruments in sets made during or for the Union during the Civil War under contract from the "U.S.  Army Medical Department"  or  "U.S.  Army Hospital  Department".  (Data Source: Edmonson's History of Instrument Makers book)

See a list of the above makers with identification information

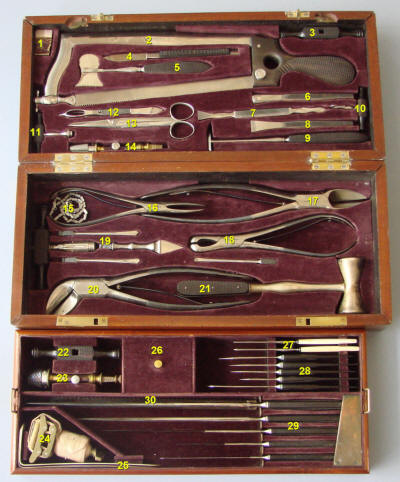

Upper tray:

1.  Bone dust brush

2.  Amputation saw

3.  Handle for small trephine

4.  Trepanning scalpel

5.  Hey saw for trepanning

6.  Gouging bone chisel

7.  Trepanning elevator

8.  Straight end bone chisel

9.  Trepanning raspatory

10 & 11. Chain saw handles (2)

12. Olive arterial forceps

13. Bandage or tissue scissor

14. Trephine head (small)



Lower tray:

15. Chain saw blades

16. Bone holding forceps

17. Liston Bone forceps (heavy)

18. Bone rongeur forceps

19. Set of bone drills (4) with handle

20. Liston knee curve cutting forceps

21. Bone chisel mallet



Removable tray:

22. Handle for large trephine

23. Trephine head (large)

24. Tourniquet (brass frame) w/strap

25. Set of muscle retractors (2)

26. Needles, suture, bone wax   compartment

27. Aneurysm needle holders

28. Scalpels, Bistouries, tenaculeum

29. Amputation knives, catlin, finger saw

30. Spare bone saw blade



Below are some of the instruments which would be expected to be found in a Civil War field set as they are unique to the problems confronted during War time or were typically found in Civil War surgical sets



Buck's rectal trocar                          Male urinary staves or sounds

     Chain saw for bone resection                     Bullet forceps



Various kinds of bullet removing instruments from the Tiemann catalog 1870's

 The Field Case contained: 2 amputating knives (one long, one medium), 2 catlings (one long, one medium), 3 scalpels, 2 bistouries, 1 hernia knife, 1 finger knife, 1 capital saw (long, bow, two blades), 1 metacarpal saw, 1 Hey's saw, 1 trephine (conical), I bone forceps (broad edged, slightly curved, spring handle), 1 bone forceps (sequestrum, spring handle), 1 artery forceps, 1 ball forceps, 1 dressing forceps, 1 dissection forceps, 1 artery needle, 1 artery needle key, 12 surgeon's needles, I tourniquet screw with pad, 1 tenaculum, 2 scissors, 2 retractors, 1 trocar and canula, 1 raspatory, 1 elevator, 1 brush, 1 bullet probe, 1 director, 6 steel bougies, silvered, double curve (Nos. 1 and 2, 3 and 4, 5 and 6, 7 and 8, 9 and 10, 11 and 12), 3 silver catheters (Nos. 3, 6, and 9), 6 gum-elastic catheters (Nos. 1, 3, 5, 7, 9, 11), 12 yards suture wire (iron), oz. ligature silk, oz. wax, 1 mahogany case (brass bound, slide catch),


List of Civil War Surgical Set and Instrument Suppliers

Brinkerhoff
Codman_&_Shurtleff
Gemrig
Goulding
Helmond
Hernstein
Kern
Kolbe
Kuemerle
Leypoldt


Otto_Reynders
Rees
Snowden_and_Brother
Teufel
Tiemann
Tiencken
Wade_and_Ford
Wirz
Wocher

Circular No. 7. Surgeon General's Office,  ( May 7, 1863)
ALLOWANCE OF SURGICAL INSTRUMENTS FOR MEDICAL OFFICERS,  FOR STAFF SURGEONS AND ASSISTANT SURGEONS.

FOR CAPITAL OPERATIONS

Two Amputating Knives, one long, one medium.
Two Catlings, one long, one medium.
Four Scalpels.
One Cartilage Knife.
One Capital Saw, long, bow, two blades.
One Metacarpal Saw.
One Chain Saw.
One Hey's Saw.
One Trephine, conical.
One Trephine, small crown.
One Bone Forceps, Liston's long, sharp, spring handle.
One Bone Forceps, broad-edged, slightly curved, spring handle.
One Bone Forceps, gnawing, spring handle.
One Bone Forceps, sequestrum, spring handle.
One Artery Forceps.
One Artery Needle.
One Artery Needle Key.
Twelve Surgeon's Needles.
One Tourniquet Screw, with pad.
One Tenaculeum.
One Scissors.
One Chisel.
One Gouge.
One Mallet.
Four Drills, (with one handle.)
Two Retractors.
One Raspatory.
One Elevator.
One Brush.
Twelve yards Suture Wire, iron.
One ounce Ligature Silk.
One ounce Wax.
One Mahogany Case, brass bound, slide catch.
One Leather Pouch.

FOR MINOR OPERATIONS.

One Amputating Knife.
Three Scalpels.
Two Bistouries.
One Hernia Knife.
One Finger Knife.
One Artery Forceps,
One Bail Forceps.
One Gullet, Forceps.
One Dressing Forceps.
One Dissection Forceps.
One Artery Needle.
One Artery Needle Key.
Twelve Surgeon's Needles.
One Tenaculum.
Two Scissors.
One Trocar and Canula.
One Belloc's Canula.
One Bullet Probe.
One Director.
One Cutting Pliers, small.
Six Steel Bougies, silvered, double curve,
Nos. 1 and 2, 3 and 4, 5 and 6, 7 and 8, 9 and 10, 11 and 12.
Three silver Catheters, Nos. 3, 6, and 9.
Six Gum-elastic Catheters, Nos. 1, 3, 5, 7, 9, and 11.
Twenty-four Suture Pins, silvered.
Six yards Suture Wire, iron.
One ounce ligature Silk. ,
One ounce Wax.
One Mahogany Case, brass-bound, slide catch.
One Leather Pouch.

FOR THE POCKET CASE

One Scalpel.
Three Bistouries.
One Tenotome.
One Gum Lancet.
IVo Thumb Lancets.
One Razor, small.
One Artery Forceps.
One Dressing Forceps.
One Artery Needle.
Six Surgeon's Needles.
One Exploring Needle.
One Tenaculeum.
One Scissors.
One Director.
Three Probes.
One Caustic Holder.
One Silver Catheter, compound.
Six yards Suture Wire, iron.
One ounce Ligature Silk.
One ounce Wax.
One Russia Leather Case.

One Leather Trunk for the set.

FOR REGIMENTAL SURGEONS AND ASSISTANT SURGEONS.

FOR THE FIELD CASE.

Two Amputating Knives, one long, one medium.
Two Catlins, one long, one medium.
Three Scalpels.
Two Bistouries.
One Hernia Knife.
One Finger Knife
One Capital Saw, long, bow, two blades.
One Metacarpal Saw.
One Key's Saw.
One Trephine, conical.
One Bone Forceps, broad-edged, slightly curved, spring handle.
One Bone Forceps, sequestrum, spring handle.
One Artery Forceps.
One Ball Forceps.
One Dressing Forceps.
One Dissection Forceps.
One Artery Needle.
One Artery Needle Key.
Twelve Surgeon's Needles.


Pocket Case, the same as

One Tourniquet, screw, with pad.
One Tenaculeum.
Two Scissors.
Two Retractors.
One Trocar and Canula.
One Raspatory.
One Elevator.
One Brush.
One Bullet Probe.
One Director.
Six Steel Bougies, silvered, double curve,
Nos. 1 and 2, 3 and 4, 5 and 6, 7 and 8, 9 and 10, 11 and 12.
Three Silver Catheters, Nos. 3, 6, 9.
Six Gum-elastic Catheters, Nos. 1, 3, 5, 7, 9, 11.
Twelve yards Suture Wire, iron.
One ounce Ligature Silk.
One ounce Wax.
One Mahogany Case, brass bound, slide catch.
One Leather Pouch.

Allowed to Staff Surgeons

CONTENTS OF THE SETS OF INSTRUMENTS AND APPLIANCES REFERRED TO
IN THE STANDARD SUPPLY TABLE.

1. The dissecting case.

One Cartilage Knife.
Three Scalpels.
One Tenaculeum.
One Dissection Forceps.
One Chain and Hooks.
Two Needles and Thread.
One Enterotome.
One Scissors.
One Blowpipe.
One Chisel.
Mahogany Box.

2. The obstetrical case.

One Simpson's Forceps.
One Vectis or Lever.
One Crochet and Blunt Hook.
One Perforator.
Russia Leather Case.

3. The pocket case for hospitals.

One sharp-pointed Bistoury.
One probe-pointed Bistoury.
One Scalpel.
One Tenaculeum.
One Abscess Lancet.
One Compound Catheter.
One Straight Scissors.
One Angular Scissors.
One Dressing Forceps.
One Artery Forceps.
One Spatula.
One Director.
Two Probes.
Six Needles.
Ligature Silk and Wax.
Russia Leather Case.

4. The teeth extracting case.

One Key with three Hooks.
Two Forceps for Molars.
One Forceps for Bicuspids.
One Forceps for Incisors.
One Gum Lancet.
One Stump Elevator.
Russia Leather Case.
